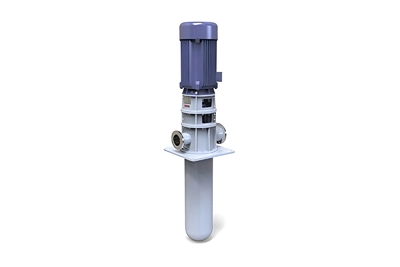

The TDS vertically suspended double casing (canned) pumps, specialized api 610 vs6 pumps and high-quality vertical suspended pump, are designed in accordance with the API 610 industrial standard. These vertical suspended pumps feature a single suction, radial impeller, and are ideal for applications where NPSH availability is limited. This vertical suspended pump under the api 610 vs6 standard is proficient in pumping clean or slightly polluted, cold or hot, chemically neutral, or aggressive liquids. These pumps find significant use in industrial, chemical, petrochemical, hydrocarbon processing, oil & gas, and refinery services, ensuring optimal performance and reliability for demanding operations with the vertical suspended pump.
Standard | API 610 /ISO 5199 |
Casing | Double Casing |
Stage | Multistage |
Capacity | Up to 800 m³/h / 3500 US gpm |
Head | Up to 800m / 2625ft |
Frequency | 50/60Hz |
Temperature | Up to 180℃/360℉ |
Discharge size | 25 to 600 mm / 1 to 24 inches |
Pressure | Up to 78 bar / 1130 psi |
Drive | Motor |
Accessories support
Motor | ABB/Siemens/WEG |
Coupling | TRUMY |
Mechanical seal | John Crane |
Flushing system | Colossus |
Bearing | SKF/FAG |
Electric | ABB/Siemens/DELIXI |
Minimize the occurrence of cavitation to the greatest extent possible with the vertical suspended pump that complies with api 610 vs6 standards.Material upgrade to achieve dry operation
Reduce vibration and increase MTBF
Achieve higher flow rates without major factory renovations
High impeller speed and high output
The friction loss of water flow is small
The pump shaft is located in a vertical position
Compact and sturdy structure
Uniform flow, smooth operation, and low vibration
Wide range of flow and head
Shipping of liquefied petroleum gas (LPG) and liquefied natural gas (LNG)
Tank farm booster
Crude oil pipeline booster
Debutanizer/depropanizer services in cryogenic gas plants
Ethylene cryogen drain pumps
Ethane circulating pumps
Propylene cryogen recycle pumps
