The submerged pump VS1/VS2, which includes the practical vs1 pump, is vertical, single-stage or multistage, single entry submerged centrifugal pump. Used for pumping clean and polluted, cold or hot,chemically neutral or aggressive liquids. The vs1 pump, alongside the performance-complementary multistage barrel pump, is mainly applied for containers, tanks, petrochemical, chemical, foodstuff, drinks, pharmacy, light industry, textile, etc.
The main features of VS1 pump include:

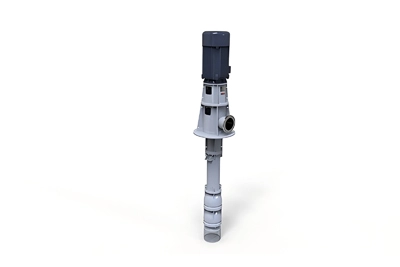

Vertical suspended structure: The pump is a vertical suspended, single shell, multi-stage impeller guide shell, with the suction inlet inserted into the wet pit and the discharge outlet passing through the riser.
Widely applicable: Suitable for fields such as petroleum refining, coal chemical industry, steel coking, natural gas chemical industry, solar power generation, etc.
Standard | API 610 /ISO 5199 |
Casing | Single Casing |
Stage | Single/multistage |
Capacity | Up to 1500 m³/h / 8000 US gpm |
Head | Up to 300m / 1000ft |
Frequency | 50/60Hz |
Temperature | Up to 250℃/500℉ |
Discharge size | 25 to 250 mm / 1 to 10 inches |
Pressure | Up to 36 bar / 525 psi |
Drive | Motor |
Accessories support
Motor | ABB/Siemens/WEG |
Coupling | TRUMY |
Mechanical seal | John Crane |
Flushing system | Colossus |
Bearing | SKF/FAG |
Electric | ABB/Siemens/DELIXI |
APPLICATION
Agricultural pumping
Municipal and plant water supply
Drainage
Flood control
Pipeline pumping
Power plant service
Petrochemical applications
High pressure pumping and other industrial uses of all types
molten salt pump
