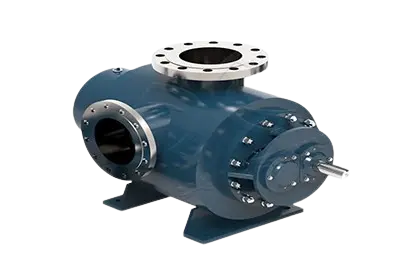

Name: Double Suction Double Screw Pump
Brand: LUBOR PUMP
Availability: InStock

Specification and Performance of Double Suction Double Screw Pump

Performance Range:

Handling various medium without solid.
viscosity: 1-1500mm2/s，the viscosity can reach up to 3×106mm2/s when reduced the speed.
Pressure range: 4.0MPa
Capacity range: 1-2000m3/h
Temperature range: -15℃-280℃

The Leading Features of Double Suction Double Screw Pump:

Delivery various medium smoothly without any disturbing and pulsation. There are medium to be pumped through out in the working elements as sealing liquid which guaranteed by the construction of pump casing. All of the pump possess high self priming ability and can deliver the liquid mixed with gas or air.
The high suction performance, i.e. very low NPSHr was guaranteed by the special design of pump.
Adopted the external bearing which lubricated individually, so can deliver various non-lubrication medium.
Adopted synchronous gear, there is no metallic contact between rotating parts, there is no dangerous even dry running in a short time.
Various construction completely such as horizontal, vertical and casing with liner, and so on.

The pump can handle various clean liquid without solid grain, low or high viscosity medium, even can deliver some corrosive medium with a correct material selection.

Industries Served by Double Suction Double Screw Pump

Application:

Ship building: used for marine as cargo and stripping pump, ballast pump, lubricating oil pump for main machine, fuel oil transfer and spray pump, load or unload oil pump.
Power plant: heavy and crude oil transfer pump, heavy oil burning pump.
Chemical industry: transfer for various acid, alkali solution, resin, color, printing ink, paint glycerin and paraffin wax.
Oil refinery: transfer for various heating oil, asphalt oil, tar, emulsion, asphalt, and also loading and unloading various oil goods for oil tanker and oil pool.
Food industry: used for brewery, food products factory, sugar refinery, tin factory to transfer for alcohol, honey, sugar juice, toothpaste, milk, cream, soy sauce, vegetable oil, animal oil and wine.
Oil field: transfer for various oil goods and crude oil and etc.

Products

Contact LUBOR for High-quality Pumps



Contact With Us:

E-mail: bo@lubor-pump.com


Have a Questions? Call Us:

+8618610632464


Add:

No.901 Shuangsheng Road,Lvshunkou District,Dalian

Waste Disposal Problem

Please contact Hengchuang for your waste management solutions!

Related Rotor Pumps

Three-Spindle Screw Pump

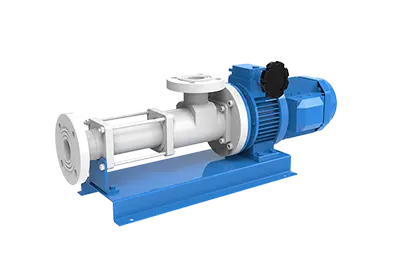

Progressing Cavity Pump
